Hot Kiln Alignment

Understanding Hot Kiln Alignment

---

Hot Kiln Alignment is a meticulous examination of the kiln axis and a comprehensive assessment of other mechanical components while the kiln is in hot running condition. It serves as both a predictive and preventive maintenance tool, offering clients a proactive plan to address identified issues or potential concerns.

The Significance of Hot Kiln Alignment

---

Hot Kiln Alignment is a crucial procedure that can significantly contribute to the longevity and reliable operation of a rotary kiln. Typically conducted every two years, although sometimes required more frequently based on kiln operating conditions, this procedure is akin to a health checkup for your kiln.

Why is Hot Kiln Alignment Required?

---

A rotary kiln's components are constantly exposed to high temperatures and dynamic loads during operation. Furthermore, factors such as civil foundation settlements can affect the kiln's stability. Over time, these accumulated deviations demand assessment to gauge the health of each component.

Benefits of Hot Kiln Alignment

---

Hot Kiln Alignment offers several notable benefits:

• Extended Component Lifespan: By addressing issues promptly, it prolongs the life of kiln components.
• Cost Savings: Minimizes maintenance costs and enhances kiln efficiency.
• Enhanced Reliability: Reduces the risk of unpredictable downtime and improves overall kiln reliability.
• Refractory Longevity: Increases the lifespan of refractory materials, further optimizing kiln performance.

Especially it is the main preventive tool that enhances life of the refractory.

Consequences of Neglecting Hot Kiln Alignment

---

Failing to conduct regular Hot Kiln Alignment can lead to adverse consequences, including:

• Increased Maintenance Costs: Resulting from accelerated wear and tear.

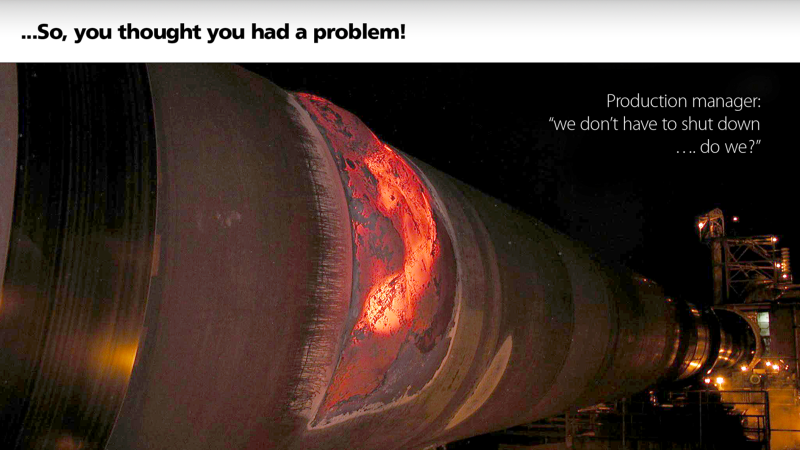

• Refractory Damage: Increased wear and failure of refractory lining.
• Coating Instability: Leading to issues with the required product coating.
• Decreased Efficiency: Affecting the kiln's overall efficiency.
• Unpredictable Failures: Risking various kiln components and unexpected downtime.

The Hot Kiln Alignment Process

---

This meticulous procedure involves a team of experienced engineers using specialized equipment, including laser alignment tools. Key measurements include:

This procedure also involves measurement of:

• Kiln Axis: Precisely measuring the horizontal and vertical axes of the kiln.
• Roller Inclination: Determining the inclination of supporting components like rollers.
• Shell Condition: Assessing shell flexing, migration, run-out, and distortion.
• Girth Gear: Examining axial and radial run-out.
• Visual Inspections: Including support roller skew and a thorough check of all kiln components.
• Detailed Report: Providing comprehensive observations, findings, and recommendations with an actionable plan.

Shell ovality / shell flex

---

Every kiln shell undergoes flexing during normal rotation of the kiln however the extent of shell flexing depends on various reasons like high diametrical difference between the tyre ID and kiln shell OD, major kiln axis misalignment, bend in the kiln shell etc. This will influence the life of the refractory.

To establish the actual flexing of the kiln shell during normal operation we use high resolution Shell Flex Beam with which we can establish and explore the possible reasons for high flexing of the kiln shell, if any.

Tyre throw & support roller shaft deflection

---

The above kiln shell bend if it is at the vicinity of the supports (tyres) will cause cyclic load on the support roller in turn leading to cranking or deflection of the support roller shaft. If the same is beyond the tolerable limit, it can cause failure of the shaft.

The same is measured with non-contact laser equipment to establish extent of deflection of support roller shaft.

Kiln girth gear and pinion

---

The spot mechanical inspection of the kiln girth gear and pinion will be carried out to provide vital information for proactive maintenance purposes. Such as Axial and Radial run-out of gear (evaluated along with root clearance), gear & pinion lubrication condition and temperature profile of the teeth.

Note: Access to the girth gear and pinion is often restricted and a detailed evaluation is requiring a kiln stop during analysis. If this is not possible only visual estimates can be made.

Executive Summary Discussion And Report Presentation

---

We prepare the detailed technical report including all measurements, analysis, final conclusions and recommendations and present the same to the concerned before our team leaves the site. This will help the concerned to understand the findings in detail and to plan for corrective action appropriately.
